KR-S80A

KR-S80A

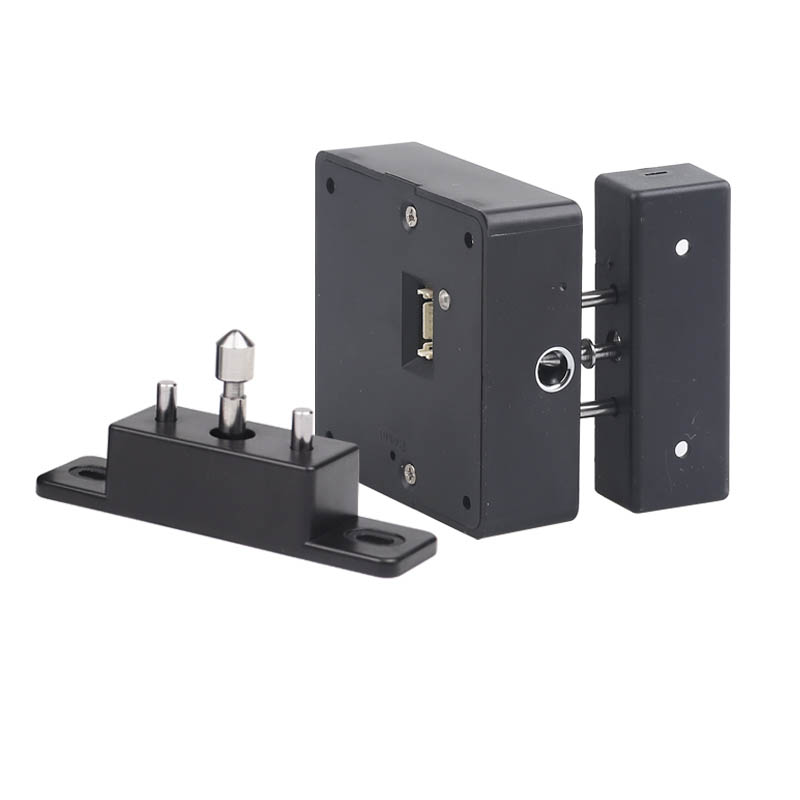

Hidden Cabinet Lock

Download pdf
  • Model
    KR-S80A
    Brand
    KENRONE
    Size
    80*80*27MM
    Material
    ABS+PC+Zinc Alloy

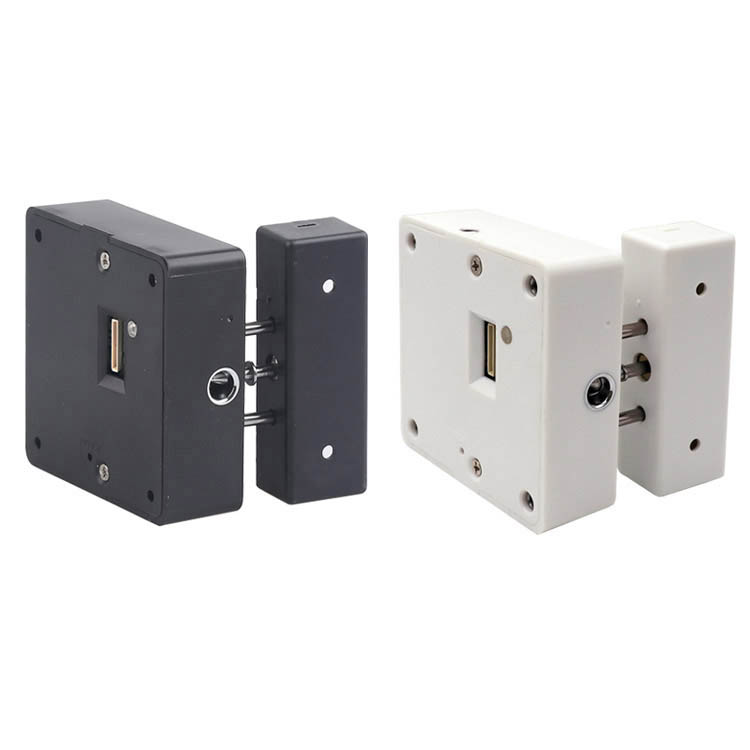

    Color
    Black/White
    Driven modes
    Motor/Servo
    Unlocking methods

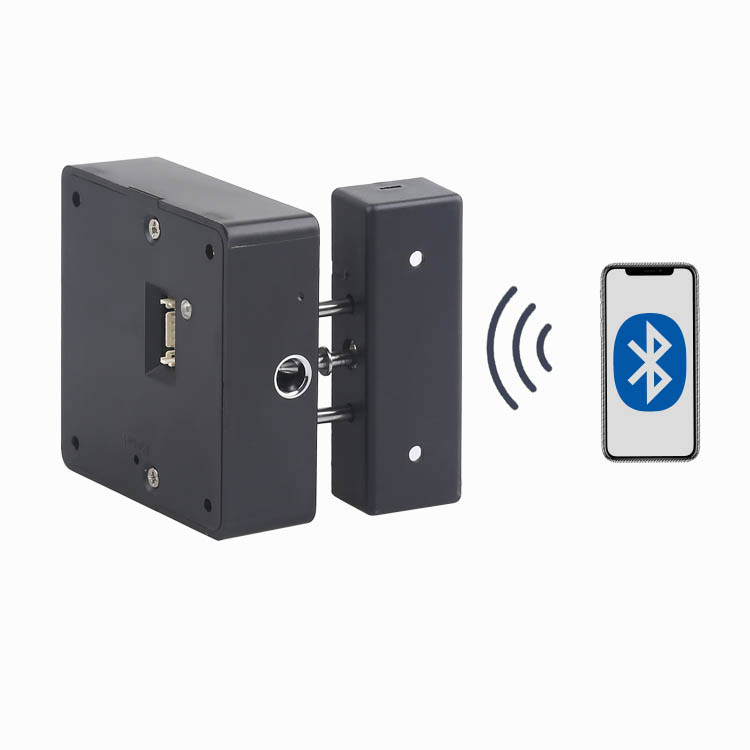

    RFID Card/Bluetooth
    Usage
    storage locker; cabinet; drawer; gym locker ; deposit locker; sauna locker, etc.
    Warning voltage
    4.5V
    Power supply
    Battery/DC
    Battery
    6V(4*1.5V AAA batteries)
    Reaction time
    Less than 500ms
    Unique design
    Hidden installation/Micro USB connector/3.5mm socket for emergency power supply
    Working temperature
    -15℃ ~ +55℃
    Working humidity
    5% ~ 95%RH
    Working life
    100000 times
    Certification
    CE FCC RoHS
    Sample
    Accepted
    OEM
    Accepted

    • Low voltage alarm: When the voltage is lower than 4.5V, there will be a sound and light prompt every time the lock is unlocked. And when the voltage is lower than 4V, it can be automatically unlocked and cannot be locked.
    • Emergency unlocking: When the battery is dead, the Micro USB connector/3.5mm socket is used to connect an external battery box or power adapter.

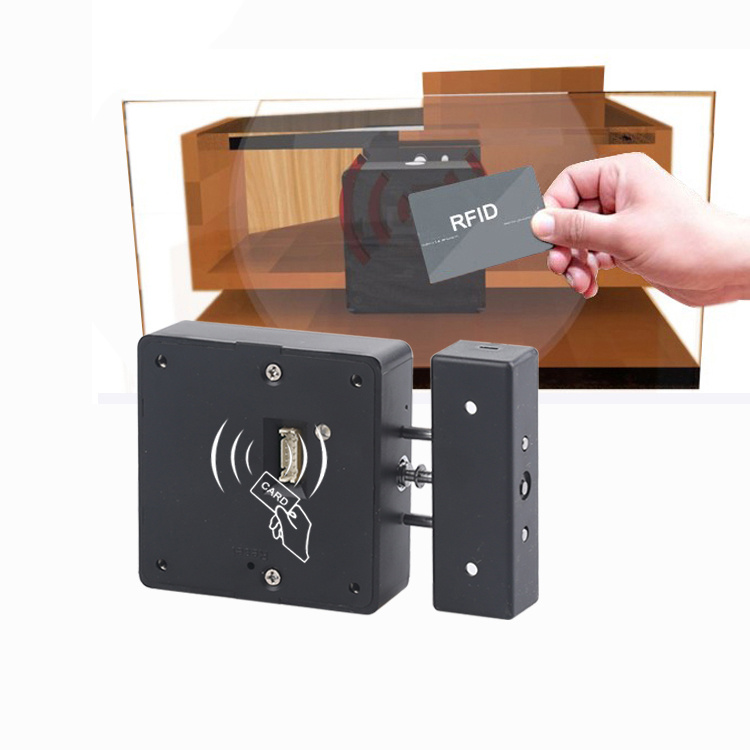

    • High-frequency card: MF1, 13.56MHz.
    • Cards of different shapes can be provided: wristbands, tags, cards, etc.
    • Support custom functions: automatic unlocking at regular intervals, the mobile phone displays the locker number, one card can only work on one lock at the same time, etc.
    • Two power supply methods: 4*AAA battery and 12V DC.
    • A variety of working modes are available: suitable for applications in different places.
