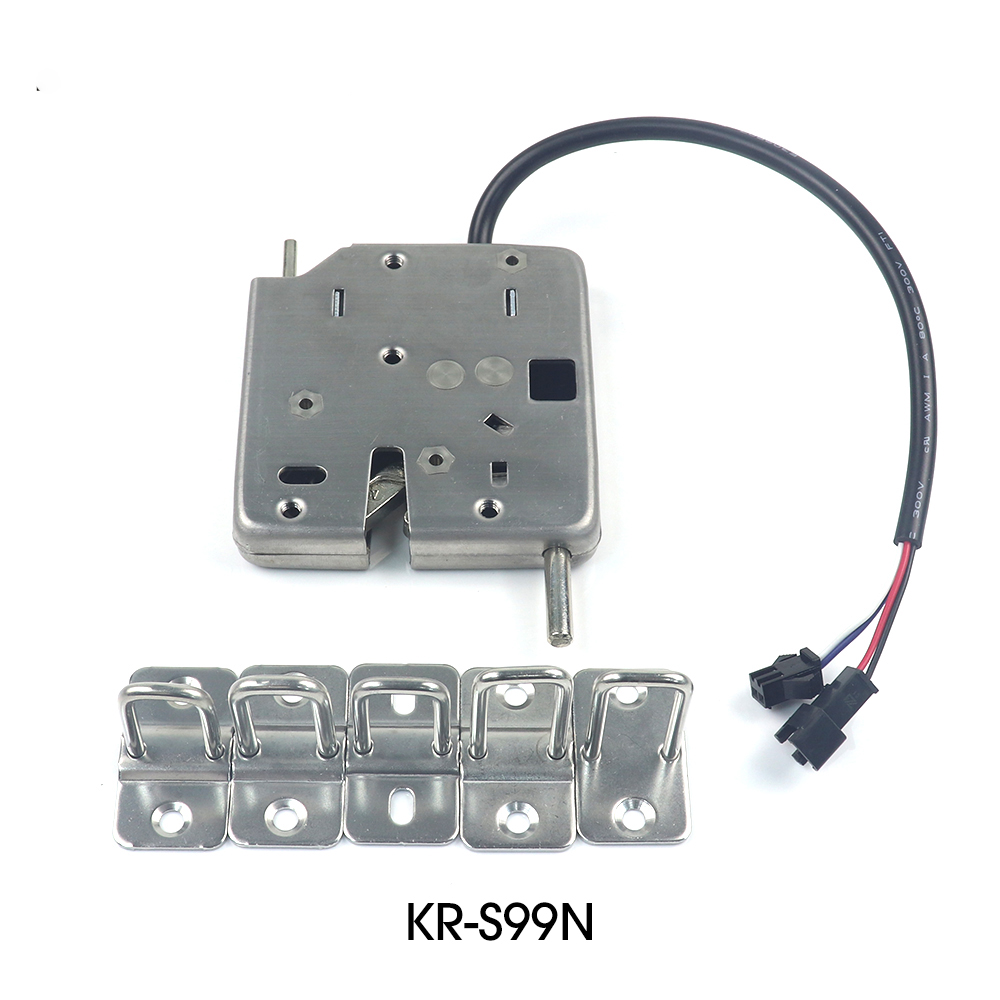

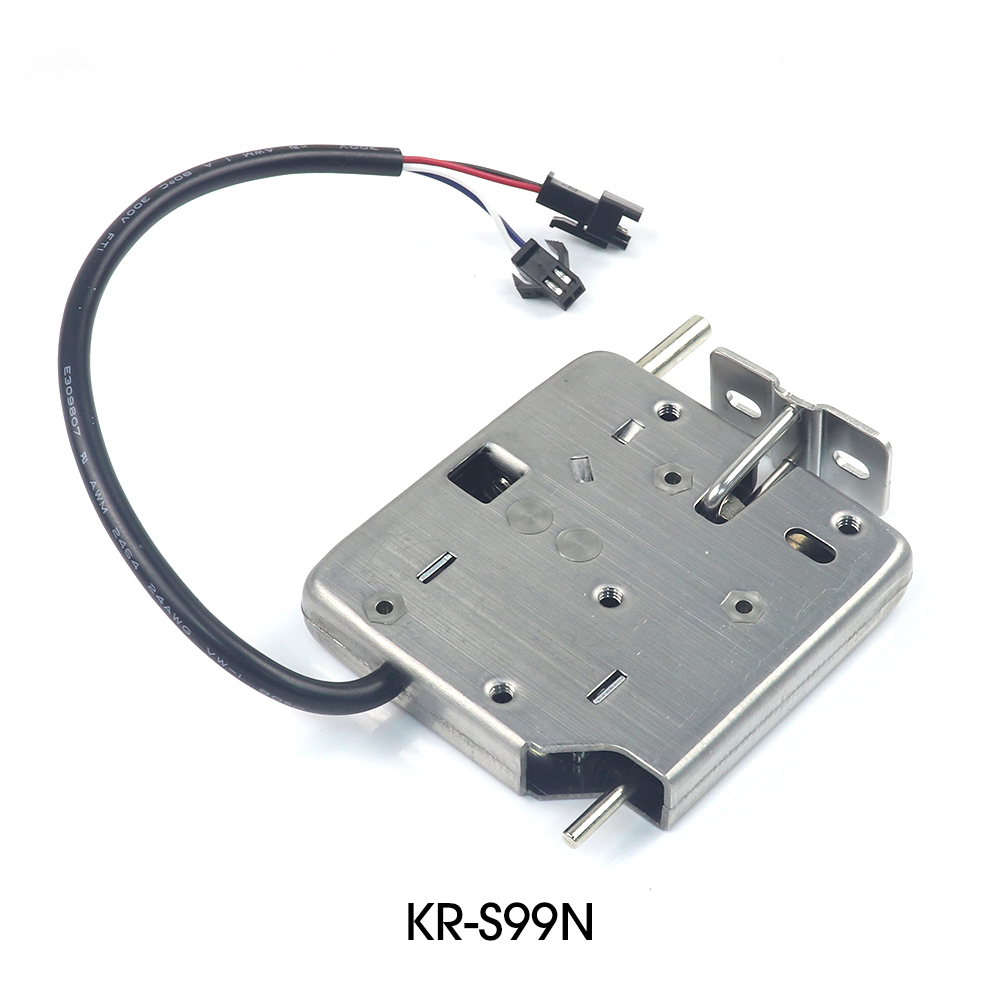

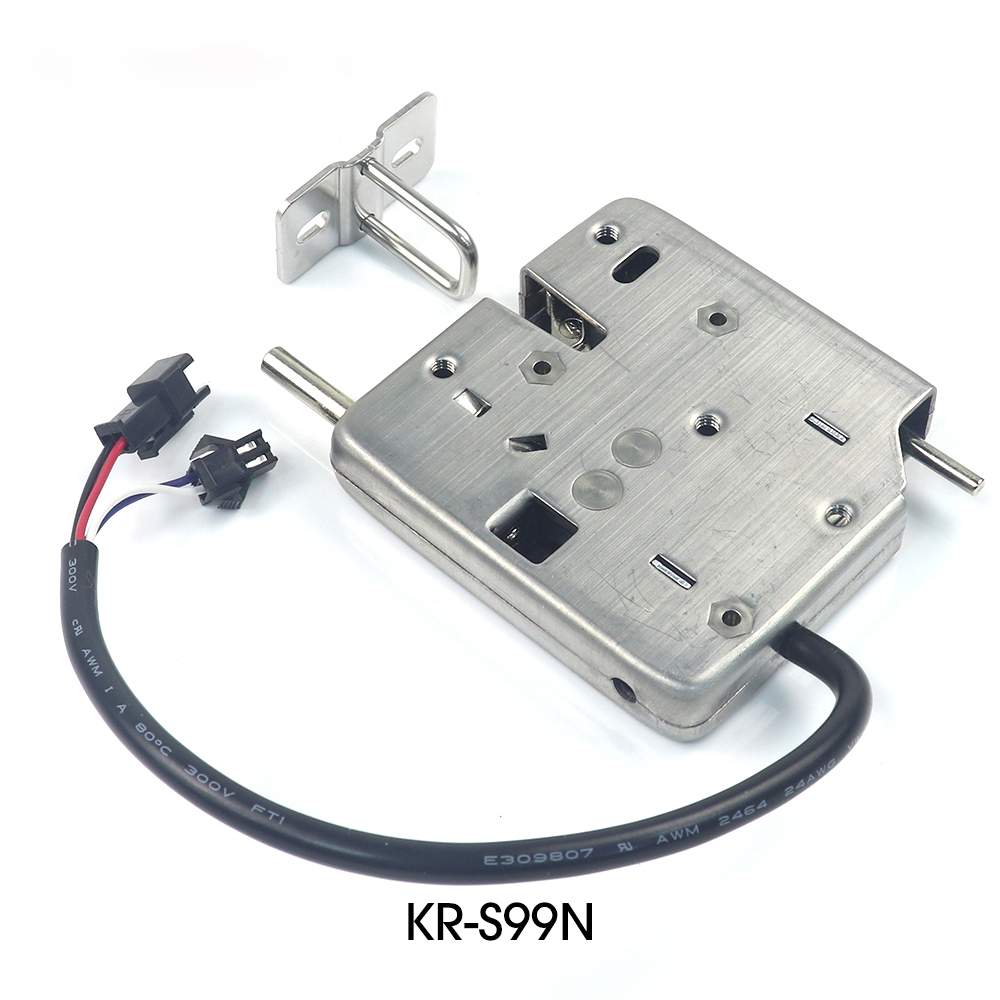

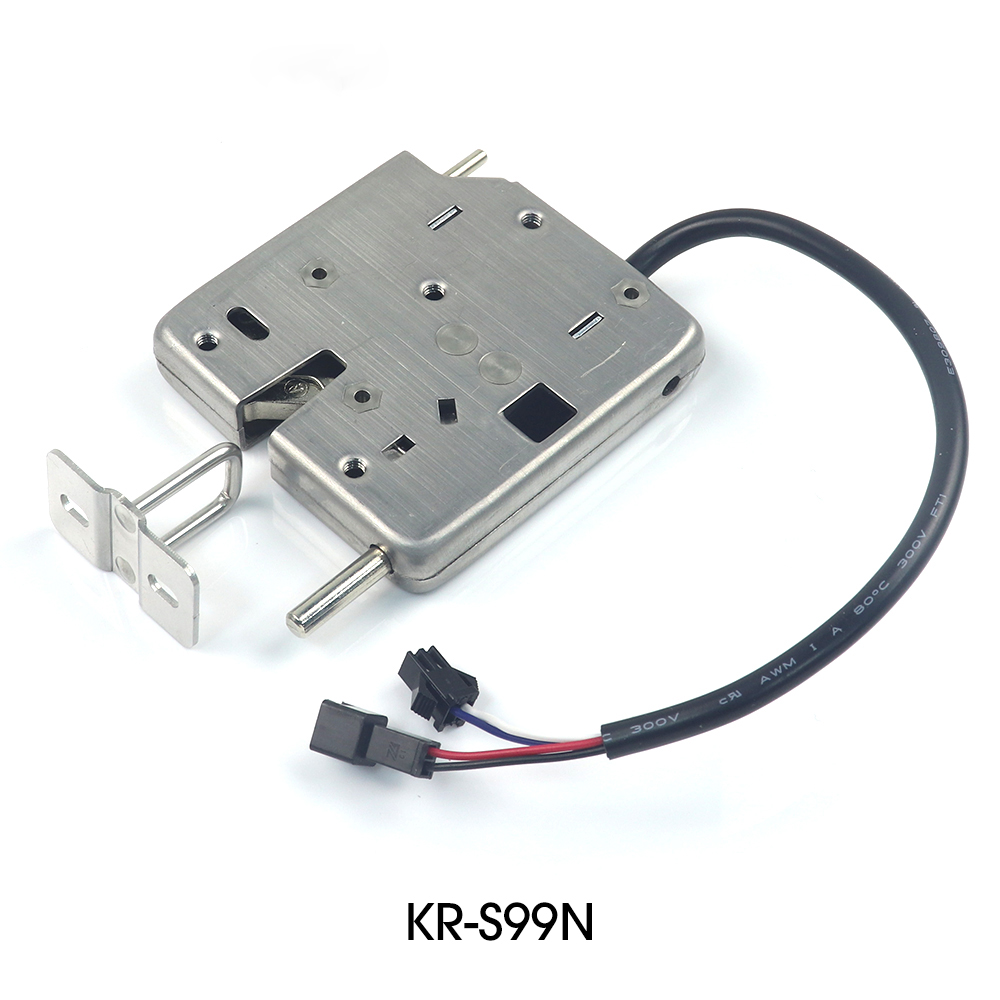

KR-S99N
Electromagnetic drive, voltage 12/24v, lock body made of 430 stainless steel,
suitable for express cabinets, parcel lockers and vending machines, etc.
Download pdf
Model | KR-S99N |
Brand | KENRONE |
Product Name | Steel Cabinet Lock |
Size | 69*72.5*13.5mm |
Weight with lock hook | 201g |
Material of lock body | 430 stainless steel |
Material of lock tongue | Zinc alloy |
Surface treatment | Passivation |
Usage | Storage locker; cabinet; Express locker; electricity meter box; vending kiosk |
Door weight | 0.5KG~10KG |
Working voltage | DC 12V/24V |
Working current | 2.4A/1.2A |
Maximum power | 28 W |
Manner of working | Independently (Be locked when door is close, unlocked power-on) |
Response time | Less than 20ms |
Working temperature | -20℃ ~ +60℃ |
Working humidity | 5% ~85%RH |
Working life | 500,000 times |
Samples | ≤3 pcs |
OEM | Accepted |
Test | Salt spray testing 48 hours |
Signal detection (open/close) | Omron |
Certification | CE; FCC; RoHS |
- AWG24 wire with PVC protective tube.
- Support custom wires and connectors.
- Electromagnetic drive, support 12V & 24V.
- The external push rod helps to push and stabilize the cabinet door.
- The compact structure design leaves more space for the storage cabinet.
- Japanese Omron switch has a long service life and detects the opening and closing of the lock.
- Equipped with an emergency unlocking lever, which can be manually unlocked in an emergency.
- Different lock hooks are suitable for different locker designs, and customized services can be provided.
- Safety: The lock shell is made of 430 stainless steel, and there will be no obvious permanent deformation.
