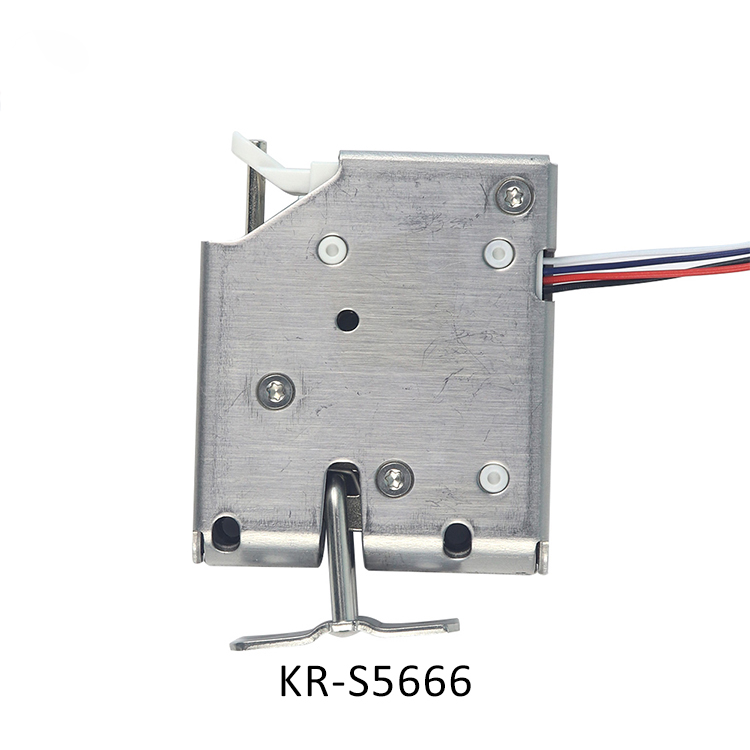

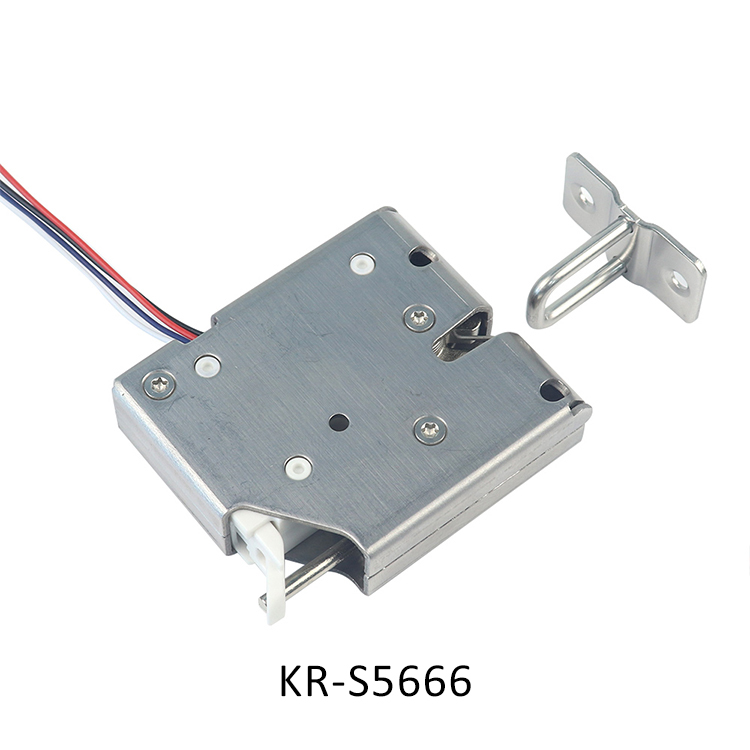

KR-5666

KR-5666

Electronic Rotary Latch

Download pdf
  • Model
    KR-5666
    Brand
    KENRONE
    Product Name
    Electronic Rotary Latch
    Size
    56*66*17mm
    Weight with lock hook
    168g
    Material of lock body
    304 stainless steel
    Material of lock tongue
    Zinc alloy
    Surface treatment
    Passivation
    Usage
    Storage locker; cabinet; Express locker; electricity meter box; vending kiosk
    Door weight
    0.5KG~10KG
    Working voltage
    DC 8V~24V
    Working current
    220mA@10V
    Maximum power
    2.2 W
    Manner of working
    Independently (Be locked when door is close, unlocked power-on)
    Response time
    Less than 20ms
    Working temperature
    -40℃ ~ +65℃
    Working humidity
    5% ~85%RH
    Working life
    500,000 times
    Samples
    ≤3 pcs
    OEM
    Accepted
    Test
    Salt spray testing 48 hours
    Signal detection (open/close)
    Omron
    Certification
    CE; FCC; RoHS

    • The metal motor driver differentiates the KR-S5666 electric lock from competing electromagnetically driven electric locks – with lower power requirements and higher load capacity.
    • High-strength structure: can withstand high mechanical loads.
    • The compact latch housing minimizes space requirements and maintains a clean, discreet appearance.
    • The internal Omron micro switch is used to latch the on/off output signal, with a service life of 500,000 times.
    • Convenient mechanical override, which can be manually released when power is off.
    • Support custom wires and connectors.
