KR-S64A

KR-S64A

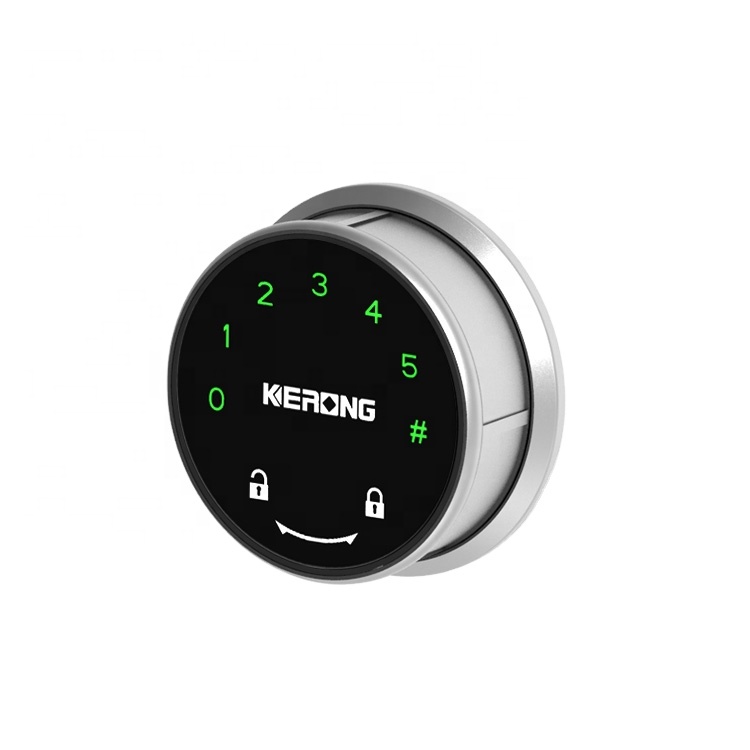

Combination Cam Lock

Download pdf
  • Model
    KR-S64A
    Brand
    KENRONE
    Material
    Keypad: ABS+PC、Lock tongue: Zinc Alloy
    Color
    Size
    Keypad: 70.2(D)*25.6(T)mm、Cam: 19(D)*21(L)mm (blade is customized)
    Weight
    180g
    Digits
    6 digits
    Battery
    3V (1*button battery CR2032)
    Driven mode
    Motor/servo
    Static power consumption
    15 uA
    Dynamic power consumption
    200 mA
    Warning voltage
    2.5 V
    Unlock way
    Code/ password/ digit
    Response time
    Less than 0.5s
    Working temperature
    -20℃ ~ +65℃
    Working humidity
    10% ~ 90%RH
    Working life
    500000 times
    Test
    Salt spray testing 72 hours
    Certification
    CE; FCC; RoHS

    • Support logo customization
    • Any combination of 4-8 digits
    • use button batteries, easy to install and remove
    • suitable for doors with different thicknesses of 1~30mm
    • Low-voltage alarm function reminds the user to replace the battery in time.
    • have garbled protection function, can effectively prevent password leakage, high-sensitivity touch screen, fast response.
