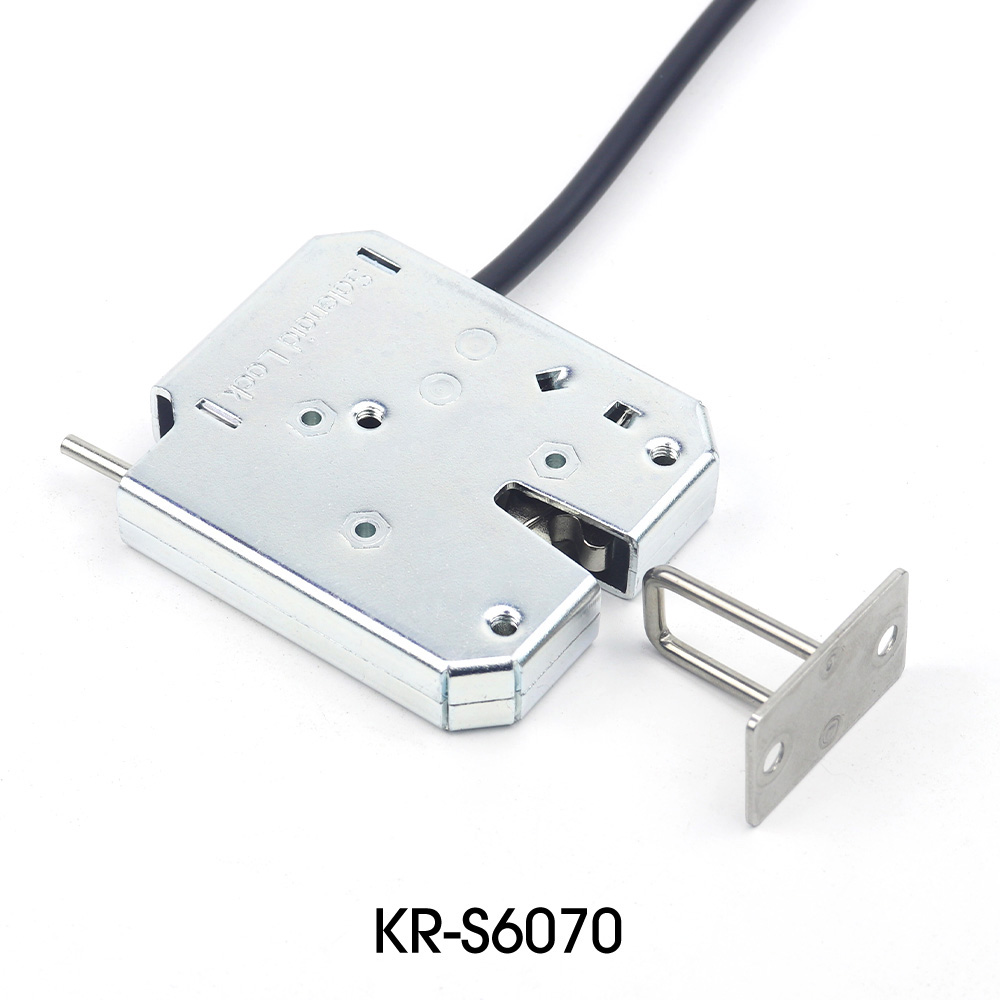

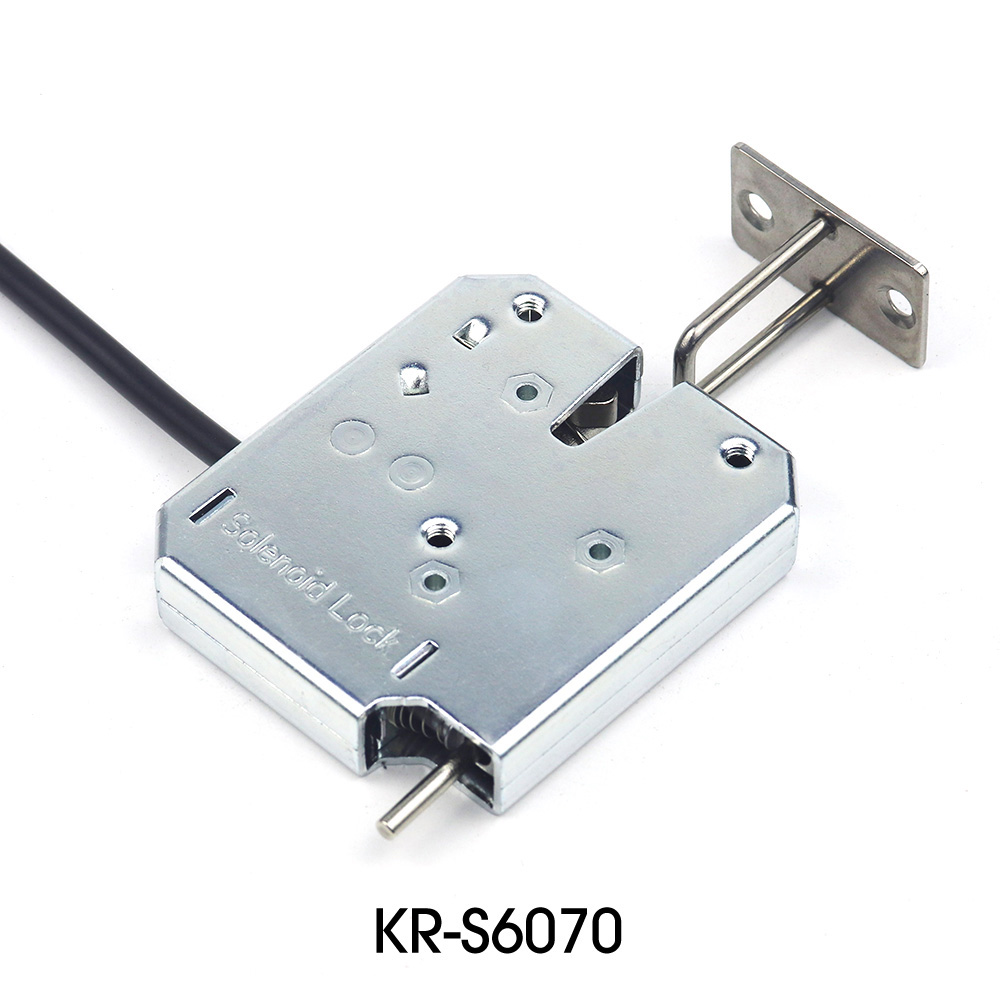

KR-S6070

KR-S6070

Electromagnetic drive, voltage 12/24v, lock body material is Q235 cold-rolled plate,

Suitable for express cabinets, parcel lockers and vending machines, etc.

Download pdf
  • Model
    KR-S6070
    Brand
    KENRONE
    Product Name
    Electric Cabinet Lock
    Size
    70*60*13.5mm
    Weight with lock hook
    172g
    Material of lock body
    Q235 cold rolled sheet
    Material of lock tongue
    Zinc alloy
    Surface treatment
    Passivation
    Usage
    Storage locker; cabinet; Express locker; electricity meter box; vending kiosk
    Door weight
    0.5KG~10KG
    Working voltage
    DC 12V/24V
    Working current
    2.4A/1.2A
    Maximum power
    28 W
    Manner of working
    Independently (Be locked when door is close, unlocked power-on)
    Response time
    Less than 20ms
    Working temperature
    -20℃ ~ +60℃
    Working humidity
    5% ~85%RH
    Working life
    500,000 times
    Samples
    ≤3 pcs
    OEM
    Accepted
    Test
    Salt spray testing 48 hours
    Signal detection (open/close)
    Omron
    Certification
    CE; FCC; RoHS

    • Solenoid driven, support 12V & 24V.
    • AWG24 wires with PVC protecting tube .
    • Support customizing wires and connectors.
    • Detective switch from China, detect the opening and closing of the lock.
    • The compact structure design allows more space for the storage cabinet.
    • Different lock hooks suit for different locker design,customizing service is available.
    • Security:Lock shells , made from Carbon steel plated with blue zinc, won’t obvious permanent deform permanently.
