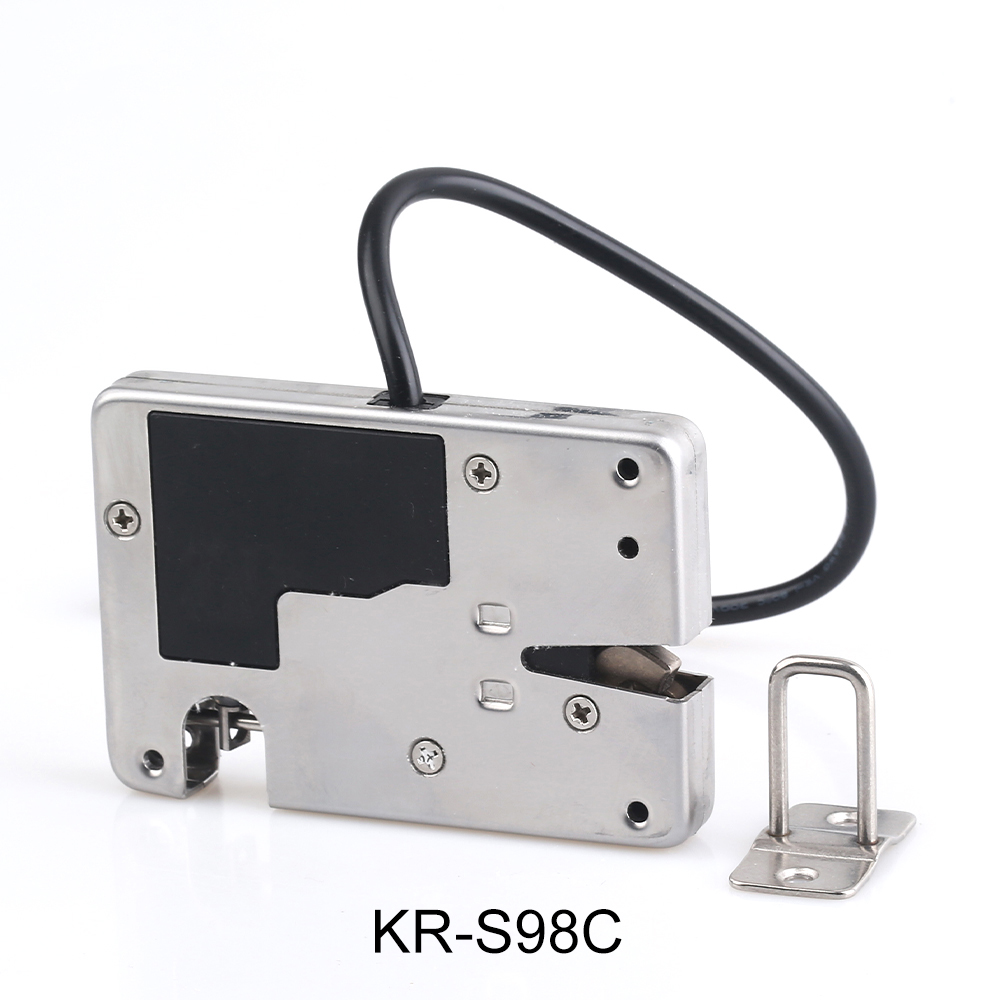

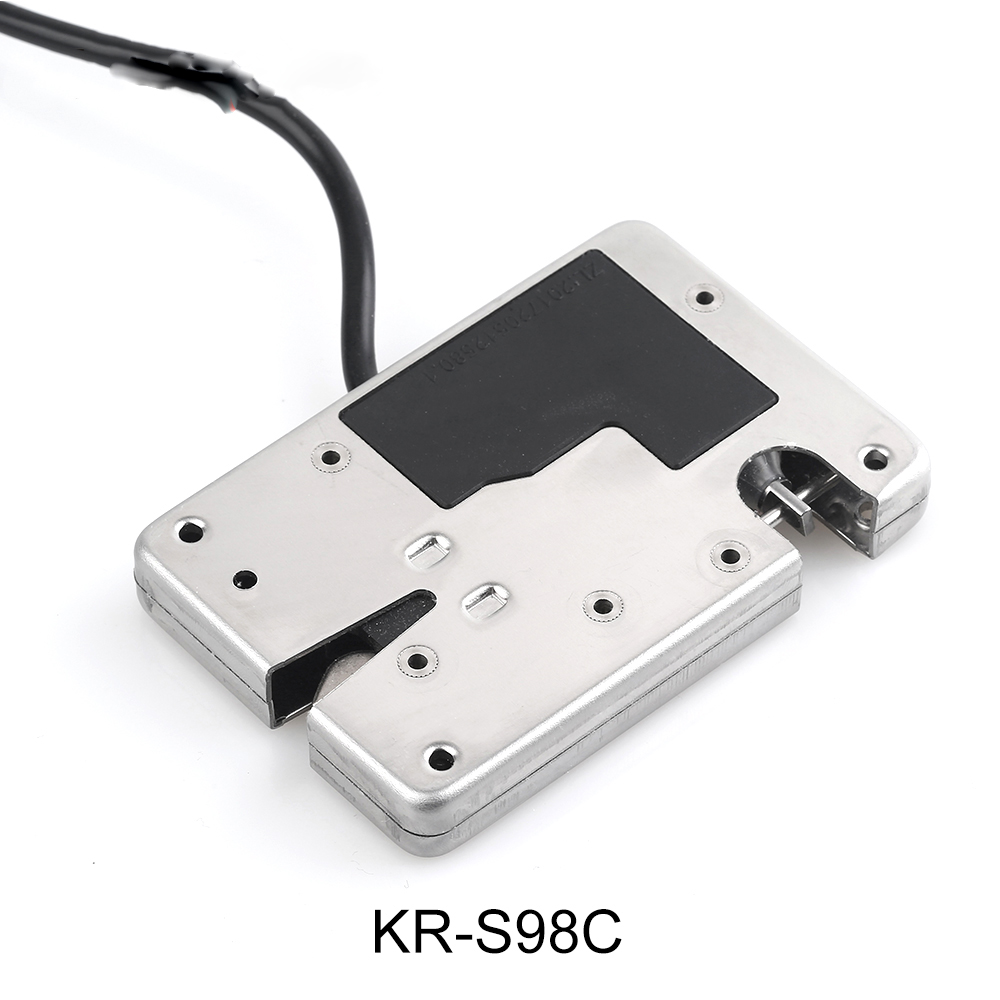

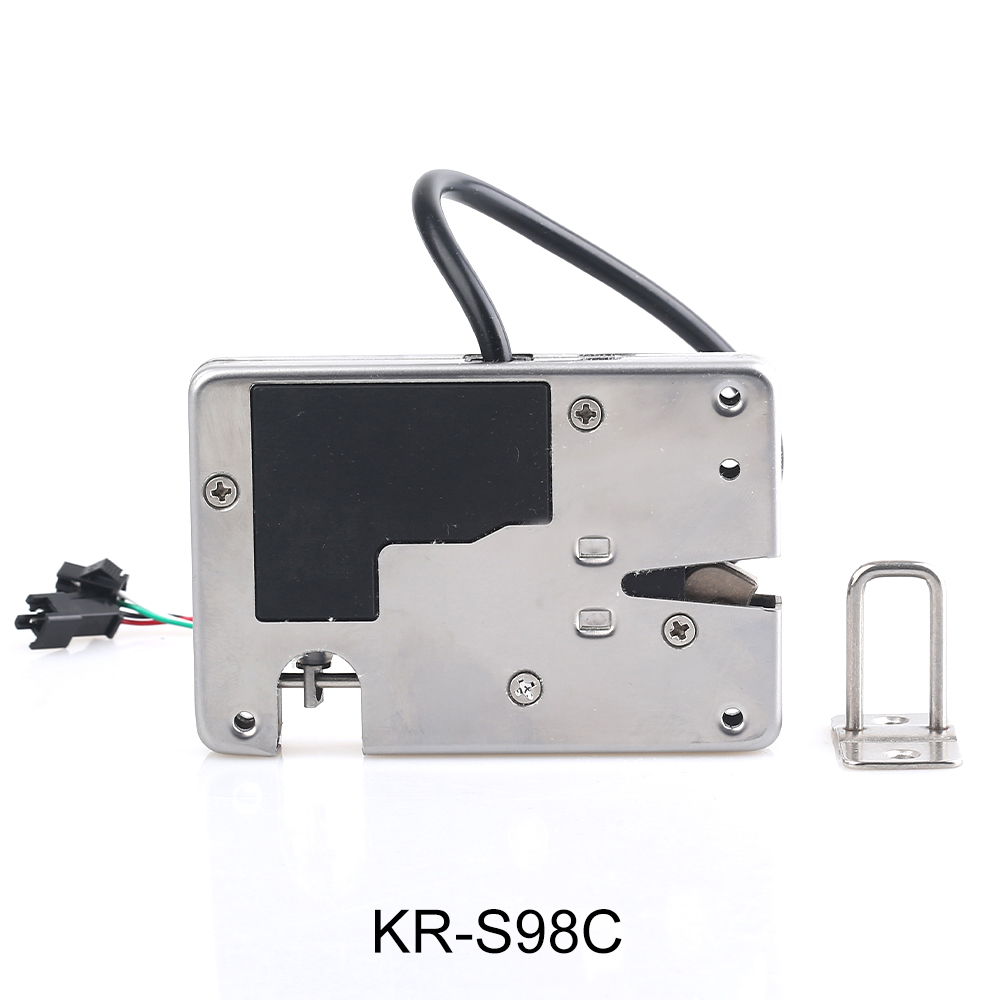

KR-S98C

KR-S98C

Electromagnetic drive, voltage 12/24v, lock body made of 430 stainless steel, waterproof grade ip65

Suitable for parcel lockers, vending machines and freezers, etc.

Download pdf
  • Model
    KR-S98C
    Brand
    KENRONE
    Product Name
    Waterproof Locker Lock
    Size
    98*66*13.8mm
    Weight with lock hook
    197g
    Material of lock body
    430 stainless steel+ABS
    Material of lock tongue
    Zinc alloy
    Surface treatment
    Passivation
    Usage
    Storage locker; cabinet; Express locker; electricity meter box; vending kiosk
    Door weight
    0.5KG~10KG
    Working voltage
    DC 12V/24V
    Working current
    2.4A/1.2A
    Maximum power
    28 W
    Manner of working
    Independently (Be locked when door is close, unlocked power-on)
    Response time
    Less than 20ms
    Working temperature
    -20℃ ~ +60℃
    Working humidity
    5% ~85%RH
    Working life
    500,000 times
    Samples
    ≤3 pcs
    OEM
    Accepted
    Test
    Salt spray testing 48 hours
    Signal detection (open/close)
    Omron
    Certification
    CE; FCC; RoHS

    • Solenoid drive, support 12V&24V.
    • AWG24 wire with PVC protective tube.
    • Support custom wires and connectors.
    • All electronic parts are protectedin the closed box. Waterproof.
    • Equipped with an emergency unlocking lever, which can be manually unlocked in an emergency.
    • Different lock hooks are suitable for different locker designs and can provide customized services.
    • The Japanese Omron switch has a long service life and detects the opening and closing of the lock.
    • Safety: The lock shell is made of 430 stainless steel, and there will be no obvious permanent deformation.
