KR-S98S

KR-S98S

Motor driven, voltage 8v~24v, lock body material is ABS+PC;
suitable for parcel lockers, vending machines and express cabinets, etc.

Download pdf
  • Model
    KR-S98S
    Brand
    KENRONE
    Product Name
    Outdoor Locker Lock

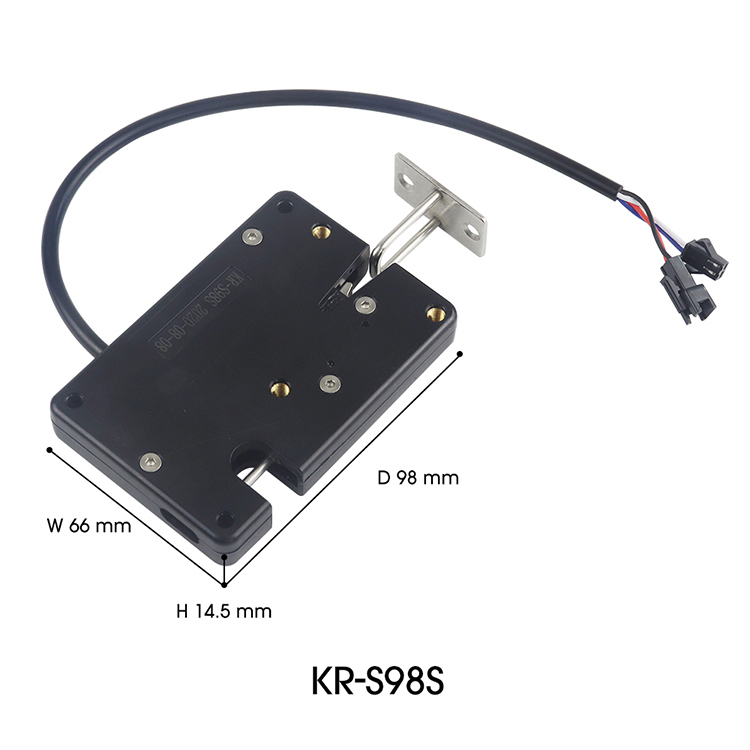

    Size
    98*66*14.5mm
    Weight with lock hook
    116g
    Material of lock body
    ABS+PC
    Material of lock tongue
    Zinc alloy
    Surface treatment
    Passivation
    Usage
    Storage locker; cabinet; Express locker; electricity meter box; vending kiosk
    Door weight
    4KG~50KG
    Working voltage
    DC 8V~24V
    Working current
    220mA@10V
    Maximum power
    2.2 W
    Manner of working
    Independently (Be locked when door is close, unlocked power-on)
    Response time
    Less than 20ms
    Working temperature
    -40℃ ~ +65℃
    Working humidity
    5% ~85%RH
    Working life
    500,000 times
    Samples
    ≤3 pcs
    OEM
    Accepted
    Test
    Salt spray testing 48 hours
    Signal detection (open/close)
    Omron
    Certification
    CE; FCC; RoHS

    • AWG24 wires with PVC protecting tube.
    • Support customizing wires and connectors.
    • IP65. All electronic parts are protected in the sealed ABS box.
    • Omron micro detective switch from Japan,high quality and durability.
    • Mechanical emergency lever, can be unlocked manually in case of power failure .
    • Motor/servo driven, wide working voltage range: 8~24V. Low power consumption.
    • It is recommended that the user’s power supply unlocking time is greater than 500ms (uninterrupted).
